Pipeline Concrete Weight Coating CWC

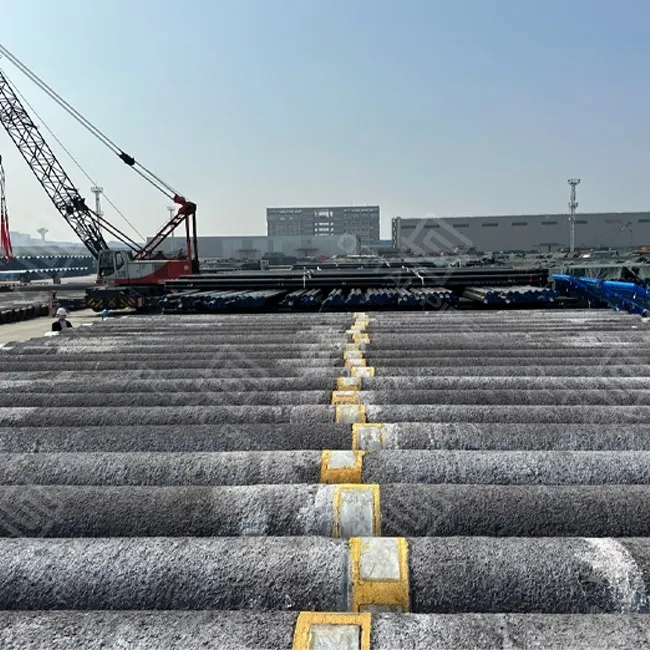

Concrete Weight Coating CWC
Pipeline Concrete Weight Coating CWC pipe

CWC Pipe(Concrete rit zawnga khuh) .

Standard: ISO 21809-5, DNV tuipui kama pipeline siam dan tur kaihhruaina
Pipe Range: 6′′ – 48′′ (custom atanga 60′′ thleng)
Coating thuk zawng: 25 – 150 mm
Concrete Density: 3040 – 3500 kg/m3 a ni thei
A tichaktu: Steel mesh, polypropylene fiber, additives te a awm bawk
Coating chi hrang hrang: Concrete rit tak tak Coating, Impingement CWC
Anode Installation: Cathodic venhimna atana hman theih sacrificial emaw ICCP anode inzawmkhawm
Mechanical Benefits: Negative buoyancy, abrasion resistance, impact laka invenna, hun rei tak-a awm theihna
Hman dan: Offshore pipeline, tuihnuai lawng luang chhuak, swamp & lui kan pelh dan, landfall approach te
A thatna pawimawh: Custom density solution, field-welding nena inmil, offshore performance finfiah

Inquiry thawn rawh .

Product Thuhmahruai .

cWC Pipe awmzia

CWC Pipe a ni(Concrete Weight Coating)hi specialized external coating a ni a, steel pipeline-ah negative buoyancy, mechanical protection, leh offshore leh swamp environment-a long-term stability pekna atan hman thin a ni. Simple corrosion coatings ang lo takin, CWC hian anti-corrosion systems chungah dense concrete layer a dah belh a, chu chuan pipeline te chu hydrodynamic force chak tak emaw, buoyant soils hnuaiah pawh a him leh nghet reng tih a tichiang a ni.

CWC Pipe hi a pawimawh ber a ni:

Tui hnuaia pipeline siam a nitui thuk lo leh tui thuk tak project-ah te
Lui leh luipui kam teuplift resistance a pawimawhna hmunah
Landfall a hnaih tawh hlethlipui, tuifinriat leh tuipui lian tak takte laka inhmukhawm

Offshore pipeline pakhat a awm reng a ngaih hunahtuipui kamah leh kawngpuiah te, lei duhtute duhthlannaConcrete rit zawnga khuh (CWC) .chhan hmantlak pathum avang hian: a belhchhah bawknegative buoyancy a niuplift ven nan, a tichangtlungtuifinriat hnuaia dinhmun nghet takcurrent leh wave action lakah, leh a pe bawkmechanical hmanga venhimna a nihandling, installation leh hun rei tak-seabed contact neih laiin. Octal Pipe hian CWC hi coordinated package-base pipe + anti-corrosion coating (3LPE/FBE/3LPP) + concrete weight coating- angin a supply a, chuvangin line hian vendor-te inkara extra rework awm lovin stability calculation leh construction requirements a tlin a ni.

CWC Pipes Standard leh a awmzia te

Octal Pipe hian international offshore pipeline standard angin CWC Pipe a siam a:

ISO 21809-5 a ni– Pipeline Transportation System atana Concrete Weight Coatings siam a ni
DNV-RP-F110 & DNV-OS-F101 te hi a ni– Offshore pipeline nghet taka awm dan tur kaihhruaina
Pipe Size Range: 1000 a ni.4′′ – 48′′ (custom atanga 60′′ thleng)
Coating a thuk zawng: 1.1.25 mm – 150 mm inkar a ni
Concrete Density awm zat: 1.1.3040 – 3500 kg/m3 (project khatah siamrem theih)
Pipe Sei zawng: 1.1.8 – 18 m standard, custom sei zawng a awm

cwc pipe coating A siam dan tur

(1) Lei chunglam inbuatsaihna

A hman dan tur3LPE anti-corrosion coating a ni(FBE primer + adhesive + polyethylene topcoat) hmanga siam a ni.

Concrete adhesion dik theih nan surface roughening

(2) Reinforcement dahna tur
Pipe chhehvelah steel mesh emaw wire cage emaw dah a ni

Crack resistance tihchak nan polypropylene fibers dah belh a ni

(3) Concrete hmanga hman dan
Heavy Concrete Weight Coating: Concrete dense tak chu controlled aggregate hmanga hnawih a ni

Impingement Concrete Weight Coating (ICWC): Concrete chu impingement hmanga hnawih a ni a, bonding strength leh density sang tak a nei thei

(4) Anode Install dan tur
Corrosion laka invenna famkim neih theih nan sacrificial anode emaw impressed current anode emaw chu CWC-coated pipeline-ah an inzawm khawm fo thin:

Anode chi hrang hrang: Aluminium, zinc, emaw MMO (Mixed Metal Oxide) anode te hi a ni

Installation dan tur: 1.1.CWC-ah embedded a ni layer a ni a, pipe-ah electric hmanga inzawm a ni

Function: Tuipui tui leh swamp condition-ah cathodic protection a pe a, pipeline dam chhung kum 20–40 chhung a ti rei thei

(5) Curing & Finishing tih hi a ni
Concrete chu mechanical strength neih theih nan controlled curing a ni

Field welding awlsam zawk nan pipe tawp chamfering emaw beveling emaw a ni.

ChumiCWC pipe coating siam dan turtih chauh hi "concrete dah belh" a ni lo. Quality outcome chu reinforcement fit-up, curing control, leh end finishing- hmanga tih a ni a, a chhan chu field issue tam zawk hi concrete-free ends-ah edge damage, cracking, emaw poor transition angin a lang thin a ni.

Surface prep & base coating confirmation: concrete hman hmaa anti-corrosion layer verified.
Reinforcement installation: handling load hnuaia concrete a delaminate loh nan mesh/cage positioning check a ni.
Concrete hman dan: controlled compaction hmanga thickness tarlan thlenga siam-.
Controlled curing: transport laiin brittle edges leh cracking hmasa ber a veng.
End finishing: concrete-free ends leh welding access (a tul hunah) atan transition thianghlim.

Mechanical & Protective Properties te pawh a awm bawk

Negative Buoyancy a awm thei: Pipeline te chu tui emaw swamp setting-ah tui hnuaia awm leh nghet taka awm reng turin a enkawl a, buoyant force atanga uplift chu a do tha thei hle.
Mechanical hmanga venhimna a ni: Installation emaw operation emaw laiin pawn lam atanga hlauhawm, anchor drag, trawling gear, leh direct impact laka invenna.
Abrasion laka inven theihna: Tuipui hnuaia inthlak danglamna, tuifinriat luang chhuak, leh lungpui emaw, abrasive emaw nena inzawmna avanga a chhe thei lo.
Crack Resistance a awm thei: Reinforced concrete hian bending, handling stress, leh operational load te chu a chhe thei lo.
Thermal Insulation hman theih a ni: Tui thuk tak flowline leh tuipui hnuaia boruakah fluid temperature humhalh nan layer dang a inzawm khawm.

concrete rit zawnga coating siamna hmun a ni

A chunga mechanical benefits te hi a vawng tlat a nih chuanconcrete rit zawnga coating siamna hmun a nireal logistics-segregation, edge spalling, early cracking, leh meter khata rit inmil lo lama hlawhchham tlangpui variable te a control thin. Buyer ngaihdan atang chuan hetah hian "CWC pipe" chu spec line atanga receiving risk ah a inthlak thin. Octal Pipe hian CWC supply chu plant-level controls hmangin a kalpui avangin i coating build-up chu lot pumpuiah a inmil a, transport, lifting, leh pull-in handling-ah a dam khawchhuak a ni.

Mix control (density inmilna): 1.1.Cement/aggregate/water ratio leh batching discipline te chu kan control a, chu chuan density tarlan chu kan hit a, weak zone leh variable submerged weight siam thei segregation kan tihtlem bawk.
Reinforcement fit-up (spalling laka invenna):Concrete dah hmain mesh/cage positioning enfiah thin a ni a, hei hi yard-a lifting emaw impact emaw laiin local thin area chip a awm loh nan.
Curing enkawl dan (crack control): 1.1.Time/temperature curing hian shrinkage cracking a tihziaawm theih nan enkawl a ni a, chu chu shipment hnu emaw, handling cycle hmasa ber hnuah emaw a lang fo thin.
Handling dan (edge leh end chhiatna):Lifting point, edge protection, leh end protection te hi coating ends-a chipping tihtlem nan hman a ni a, chutah chuan chhiatna hian site siamthat hun a tikhawtlai fo thin.

Field Joint & Welding Compatibility – tuipui kama sakna atana siam a ni

Offshore spread-ah chuan CWC pipe hi a "tha" chauh a niwelding leh field joint coating a ti slow lo. Concrete hian tuifinriat hnuaia pipe chu a venghim a, mahse a tawp te chu a inbuatsaih dik loh chuan crew-te chuan concrete chip-naah darkar tam tak an khawhral a, edge chhiatna siamṭhat a, field joint-schedul risk leh rejection risk sang berna hmun dik takah hna an thawk leh ṭhin.

Octal Pipe hian Concrete Weight Coating a siam dan tuipui kama sakna atan hmantlak a ni em?

Concrete-free ends chu welding practice tak tak nena inmil a ni

Concrete tihtlem (CWC-free sei zawng):Pipe tawp atanga concrete tan thlengin fixed concrete-free distance kan vawng a, a tlangpuiinA tawp khatah 200–400 mm a ni(a nih loh leh i project-in a tarlan angin). Hei hian hmun remchang a pe a niline-up clamps, chhung lam/pawn lam welding station leh handling tools te a awm bawkfit-up laiin concrete chip lovin.
Anti-corrosion coating tihtlem (3LPE/FBE/3LPP):Concrete-free zone chhungah hian corrosion coating pawh field joint hnathawhna atan cutback hran hmanga control a ni bawk. Offshore program tam zawkah chuan Octal hian...Bevel tawp lamah 3LPE (or 3LPP/FBE) tihtlem a nia tlangpuiin a chhehvel150–250 mm inkar a ni(or i field joint coating system angin), welding atan bare-steel band mumal tak dah la, chutah chuan field-joint coating atan transition thianghlim tak a awm bawk.
Controlled transitions ("ragged edge" awm lo):Concrete termination hi a pianzia leh venhim a nih avangin a sir chu lifting, loading leh firing-line handling hmangin a stable thei a ni. Corrosion coating edge pawh hi a fai a, teh theih a nih avangin field joint crew te chuan sleeves / liquid epoxy system te chu prep, heat leh apply theih a ni a, edge mumal lo chu an um lo emaw, hmun chhia chu an rework thei bawk.

End profile chu coating edge humhim turin siam a ni

Damage point tam ber chu concrete edge hi loading, pipe handling leh stringing laiin a ni. Octal hian controlled a hmang atawp chamfer / taper profile a nileh edge protection a nih avangin concrete termination chu a crack emaw spall emaw a tlem zawk. Chu chu deck-a siamthat tlem zawk tihna a ni a, cutback-a corrosion coating a lan theihna tur risk a tlem tihna a ni.

Field joint coating system nena inmilna

Project hrang hrangah chuan field joint method hrang hrang (heat-shrink sleeves, liquid epoxy/PU system, emaw 3LPP/3LPE compatible solutions) an hmang thin. Octal hian CWC pipe cutback, surface buatsaih leh transition profile a coordinate avangin ifield joint coating system chu concrete do lovin hman theih a ni. A tul chuan cutback sei zawng, coating build{1}}up leh joint transition zone-te tarlanna drawing kan supply thei a, chuvangin welding contractor leh coating crew te hian reference khat atang hian hna an thawk thei a ni.

Lab performance chauh ni lovin handling vel a design a ni

Offshore pipe hi lift tam tak-mill yard, port, vessel loading, firing line, stinger kaltlangin a kal thin. Octal hian "in-between" stages a ngaihtuah ber a: concrete edges stable, marking chiang tak, protected bevels leh packaging tawp lama chhiatna tihziaawmna. Tum chu a awlsam hle:vessel-ah touch-up hna a thawk tlem zawk, lay rate mumal zawk, leh CWC pipe chip emaw, cutback chhia emaw avanga NCR tlem zawk.

Accountable package pakhat: base pipe + corrosion coating + CWC

CWC pipes performance hi a hnuaia thil awm danah a innghat. Octal hian package chu coordinated scope pakhat angin a supply a-.base pipe + 3LPE + CWC + cutback/end buatsaih dan-chuvangin bonding, compatibility leh inspection te hi vendor tam tak inkara insem ai chuan mawhphurhna pakhat hnuaiah enkawl a ni.

cwc pipe-octal pipe octalpipe CWC PIPE

Buoyancy & Stability Inputs – I Project atanga Kan Mamawh

Buoyancy & Stability Inputs – I Project atanga Kan Mamawh
Concrete weight coating hi "one thickness fits all" a ni tlem hle. CWC coated pipe design dik tak chu tuipui kama leilung, current, lay method leh concrete hnuaia anti-corrosion coating system-ah a innghat a ni
Octal-a thusawi leh engineer tur chuanpipeline concrete rit zawnga khuh (CWC) hmanga siam a ni.dik takin, a hnuaia thilte hi kan nemnghet tlangpui:

Buyer / EPC input a ni	CWC tan a pawimawh chhan	Eng nge Octal rawn kir leh
Pipe OD / WT / sei zawng & steel grade a ni	Submerged weight leh handling stress a tichiang	CWC thickness & density rawtna (project range chhunga) 1.1.
A rilru a buai em em a, a rilru a hah em em bawk a. Anti-corrosion system (FBE / 3LPE / 3LPP) .	Concrete bonding leh hun rei tak-delamination risk a awm thei	Surface prep + bonding plan leh test scope te a awm bawk
Tui thuk zawng / current / tuifinriat hnuai dinhmun	Uplift risk a tichak a, negative buoyancy a mamawh bawk	Buoyancy / stability check sheet (project-bik bik) a ni.
Installation dan (S-lay / J-lay / tuipui kamah pull / swamp crossing)	Impact, bending leh abrasion exposure te a control thei	Reinforcement option (mesh / fiber) & a rei theihna tur target
Field joint plan (weld kalphung, joint-a coating hman dan) 1.1.	Girth weld-ah "weak points" a veng thei	Concrete-free ends + bevel/chamfer solution hmanga siam a ni
CP design (inthawina / ICCP) & anode chi hrang hrang	Rework ngai lovin anode te chu coating ah a inzawm khawm thin	Anode embedding & electrical bonding siam dan tur ruahmanna siam a ni

Concrete rit zawng coating density a awmhi-bottom stability calculation-a direct-a inthlak danglam thei parameter tlemte zinga mi a ni. Buyers te chuan RFQ ah density leh thickness lock khawm tur a ni a, chutiang chuan delivered submerged weight chu installation design intent nen a inmil tur a ni.

Buyer-in a tarlan dan	Site-a a control dan
Concrete rit zawng coating density (kg/m3) a ni.	Metre khata tui hnuaia rit zawng (stability) 1.1.
Coating thuk zawng (mm) 1.1.	A rit zawng zawng + mechanical protection level
Tolerance / pawm theihna tur (a tul chuan) .	"Close enough" tih hi dawngtuah pawm theih a ni em

Octal Pipe-a CWC Pipes thawn chhuahna video en duh tan click la↓

CWC Pipe a niQuality Control & Testing neih a ni

Octal Pipe hian QA/QC protocol khauh tak tak a kalpui a, hei hian a integrity leh performance a tichiang a niCWC Pipe hmanga khuh a nidilna hrang hrang:

Density leh Compression Test te a ni: Concrete density leh compressive strength hian buoyancy leh load-bearing atana threshold tarlan a tlin tih finfiah.
Bonding Test neih a ni: Concrete layer leh a hnuaia anti-corrosion coating inkara adhesion nghet tak awm chu validate la, delamination a awm loh nan.
Dimensional Checks te pawh a awm: Coating thickness leh geometry pum pui chu project tolerances nena inmil tura enfiah.
Holiday Detection neih a ni: Anti-corrosion base layer-a chhiatna emaw, void emaw awm zawng zawng hriatchhuah leh siamthat, venhimna famkim neih theih nan.
Buoyancy Simulation hmanga siam a ni: Tui hnuaia hmuna uplift leh stability do theihna finfiah turin khawvel dinhmun tak tak-simulate.

CWC pipe wall thickness measurement and dimensional inspection CWC concrete weight coated pipe length and wall thickness inspection

Engineering lama hman tur hrang hrang(Concrete rit zawnga khuh Pipeline / Pipe)

Dilna section	Hna dik tak-site dinhmun	Engvangin nge concrete weight coating hi tarlan a nih	Octal Pipe supply lam ngaihtuah a ni
Tui hnuaia pipeline siam a ni	Current leh wave action hian lay laiin uplift leh lateral movement a thlen thei a; positioning laiin tuifinriat hnuai contact/drag	Pipeline atan concrete weight coating siam a ninegative buoyancy a belh a, anti-corrosion layer humhimtu pawn lam shell a dah bawk	Consistent build-up leh clean end transition te; concrete-free ends for welding access (a tarlan hunah)
Nearshore & landfall lam panna kawng a ni	Pull-in over rollers/winches, tidal zone abrasion, tuipui kama erosion leh impact risk te a ni	Concrete weight coating pipe section te hian pull-in abrasion an do thei a, tide/wave cycle kaltlangin an thut reng thin	Cutback sei zawng + tawp venhimna chu pull-in/welding station practice-a aligned (a tarlan hunah)
Swamp / marsh inkar a ni	Leilung tui (buoyant soils) leh lei nêm tak chuan backfill hnuah line chu a chawi sang thei a; tui level inthlak danglam chuan exposure risk a sang chho zel bawk	Pipeline atana concrete weight coating hian tui hnuaia rit a tipung a, hei hian tui a pil leh a che thei lo	Density/thickness target te chu stability intent nen a inmil a; cracking/spalling tihtlem nan reinforcement control a ni
Lui kan pelh dan tur	Seasonal flood, high velocity flow, scour hian pipe leh shift alignment a pholang thei a ni	Concrete weight coating pipeline section te hian uplift an dodal a, cover a hloh chuan mechanical protection a pe bawk	Fast field welding + field joint coating atan end finishing tih nawn leh theih a ni a; handling rules hmangin edge chhiatna a awm loh nan
Tui thuk takah installation te	Long lay spreads, hman nawn fo, tui thuk takah stability mamawh	Concrete weight coating hian on-bottom stability a vawng reng thei a, installation cycle rei tak chhunga coating a humhim bawk	Lifting/transport-a chipping tihtlem nan uniformity + handling discipline; a tul hunah PO/ITP khatah inspection scope pek theih a ni

Octal Pipe CWC coated pipe hman tangkai dan pawimawh tak tak

Octal Pipe hian CWC advantage hi a awm atanga lo chhuak a nidawr chhungah control a ni-offshore CWC harsatna tlangpui (weight variance, edge spalling, shipment hnua cracking, leh end-transition damage welding tikhawtlai thei tur venna step te.

Weight build-up chu system angin control a ni (density + thickness + reinforcement):Plant-ah chuan batching leh placement te chu enkawl a ni a, chutiang chuan density leh thickness chu stability intent nen a inmil reng a, reinforcement chu local weak zone awm lo turin dah a ni bawk. Hei hi Octal Pipe hian "same spec, different weight per meter" variation a tihtlem dan a ni a, chu chuan installation laiin re-check a force thin.(PO/ITP-a tarlan hunah density/thickness record supply theih a ni.)

Concrete hman hmaa interface discipline neih dan:Hlawhchhamna tam tak chu interface atang hian a intan a, concrete atang ngei pawhin a intan lo. Octal Pipe hian concrete dah hmain base-coating confirmation leh surface condition control a kalpui a, chuvangin concrete layer chu a hnuah handling load hnuaia spall emaw hollow spot angin a lifting ai chuan a bond tha zawk a ni.

Welding reality atana siam end transitions (factory hmel chauh ni lovin):A tam ber-cost delays hi a tawp ber-ragged edges, chipped transitions, emaw cutbacks welding station nena inmil loah a thleng tlangpui. Octal Pipe hian concrete-free end length leh transition profile a control a, chuvangin fit-up, clamps, leh field joint coating hna chu a sir lama concrete tichhia lovin a kal zel thei a ni.(PO/ITP khata cutback leh profile tihtawp.)

Transport damage vel a siam curing leh handling control te:CWC hi dispatch-ah a lang tha fo a, yard move, trucking, port lifting-ah te a hlawhchham fo bawk. Octal Pipe hian curing conditions a enkawl a, handling discipline (lifting points, stacking rules, edge/end protection) hmangin micro-cracking leh edge spalling a tihziaawm a, chu chuan site siamthat leh acceptance delays a siam thei a ni.

CWC pipe being hoisted to transport truck CWC pipe stock stacking for shipment by order

Tunah hian biak theih reng e

FAQ

Q1 - Engvangin nge tuipui kama pipeline-ah concrete weight coating hi hman?

A: Concrete rit zawnga khuh a nia ti leh bawknegative buoyancy a nileh a tichangtlung bawkon-a hnuai lam stability, pipeline chu current leh wave atanga uplift do thei tur leh tuifinriat hnuaia ding reng tura puitu a ni.

Q2 - CWC thickness leh density hi engtin nge i thlan?

A:Target a zirin an thlang thintui hnuaia rit zawng, stability criteria, tui thuk/current, lay method, leh coating system (FBE/3LPE/3LPP) te, chuvangin line hian a tul lo zawnga senso awm lovin stability margin a tlin a ni.

Q3:CWC hi 3LPE/FBE chungah hman theih a ni em, site-ah welding a la phal thei em?

A:Ni e-Octal Pipe hian CWC a supply over3LPE/FBE/3LPP hmanga tih a ninencontrolled concrete-free ends leh coating tihtlem te, chuvangin girth welding leh field joint coating te hi concrete chip lovin fai takin tih theih a ni.
